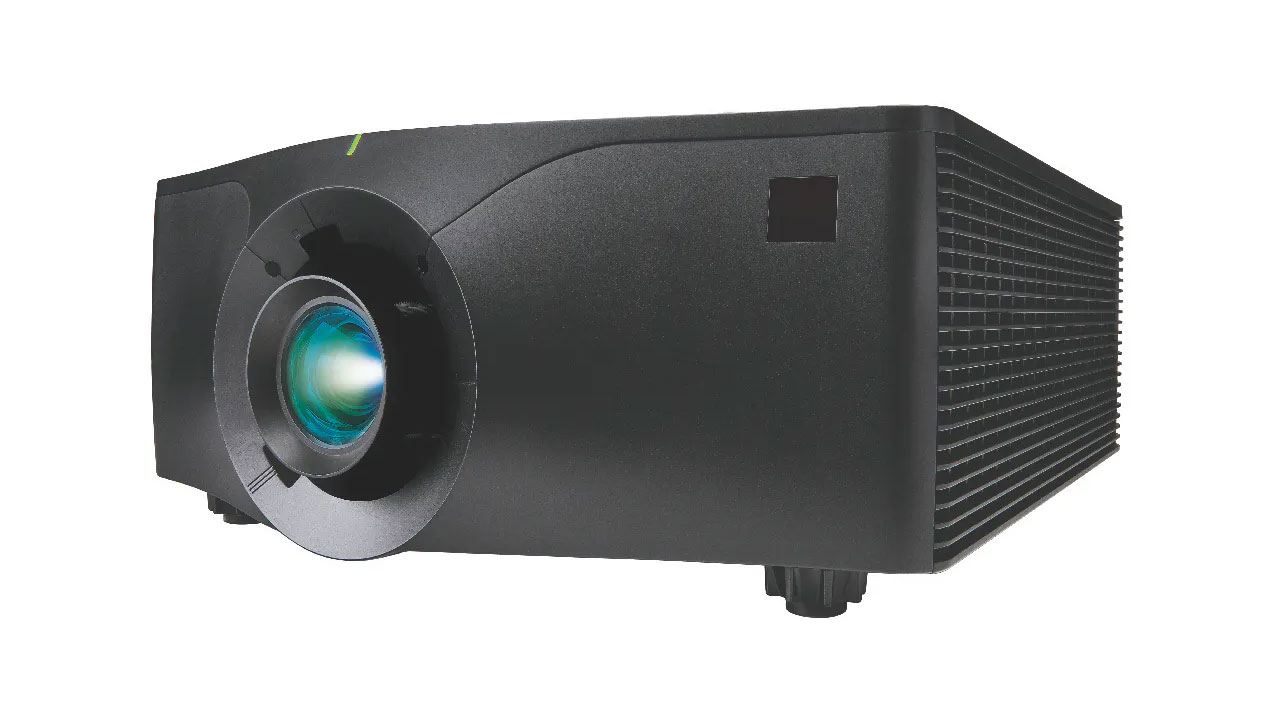

Christie DWU1400-GS 是一款单芯片 DLP 激光投影仪，具有 WUXGA 分辨率和明亮的 12,500 ANSI 流明输出。
它是科视 GS 系列中最亮的型号，亮度可达 12,000 ANSI 流明（制造商额定值）。即使全天候全功率运行，其激光光源预计也能持续约 20,000 小时，亮度才会降至一半。
这款投影机与其他 GS 型号一样，采用紧凑轻巧的设计，方便运输和在活动或展会上安装。它兼容所有 GS 系列配件，并提供七种可更换镜头，以满足不同的场地需求。
内置科视Christie Twist软件，助您轻松在任何平面或曲面上进行边缘融合和多幅图像堆叠。该软件采用网格点界面，提供精准控制。
它还兼容科视的 Mystique 系统，该系统利用摄像头实现快速精准的自动对准和校准。我将在完整评测中详细介绍这些功能。
| 科视Christie DWU1400-GS | |
|---|---|
| 价格 | 建议零售价 19,706 美元 |
| 成像仪类型 | 1DLP（0.67英寸DMD） |
| 显示分辨率 | WUXGA（1,920×1,200） |
| 亮度（制造商声明） | 12,000 ANSI 流明 |
| 光源类型 | 蓝色激光荧光粉 |
| 对比度 | 6,000:1 动态对比度 |
| 变焦镜头比率 | 镜头依赖 |
| 镜头移位 | H +30%，V +100%（仅限变焦镜头） |
| 光源寿命 | 20,000 小时至 50% 亮度 |
| 音响系统 | 不适用 |
| 重量 | 50.3 磅（22.8 千克）不含镜头 |
| 保修单 | 5 年（P/L）或 20,000 小时，以先到者为准 |
概述
Christie DWU1400-GS 非常适合大学、教堂、会议和小型娱乐场所等场所。
它符合 TAA 标准，并享有科视长达 5 年的质保，可靠性可见一斑。这款投影机不仅技术先进，更能为展会和活动创造难忘的瞬间。
DWU1400-GS 拥有 20,000 小时几乎免维护的运行时间、紧凑的设计、轻巧的重量、安静的风扇以及全系列镜头，可在多种环境下全天候使用。此外，我们还提供符合 TAA 标准的版本，为有需要的用户提供 5 年保修，让您更加安心。
科视Christie GS 系列涵盖从小型会议室和精品影院到大型屏幕和投影映射表演的各种应用。无论您的预算或需求如何，总有一款科视Christie 投影机适合您，无论您需要激光、RGB 纯激光、不同亮度级别，还是各种分辨率和镜头。
投影技术日新月异。光源等关键部件的价格不断下降，而性能却不断提升。一些传统品牌正在退出消费市场，而像三星这样的公司则正在涌入。
在专业投影领域，这个领域更加稳定。巴可、索尼和科视等值得信赖的品牌继续凭借可靠的解决方案引领行业发展。科视数字是专业投影机领域长期享有盛誉的领导者。

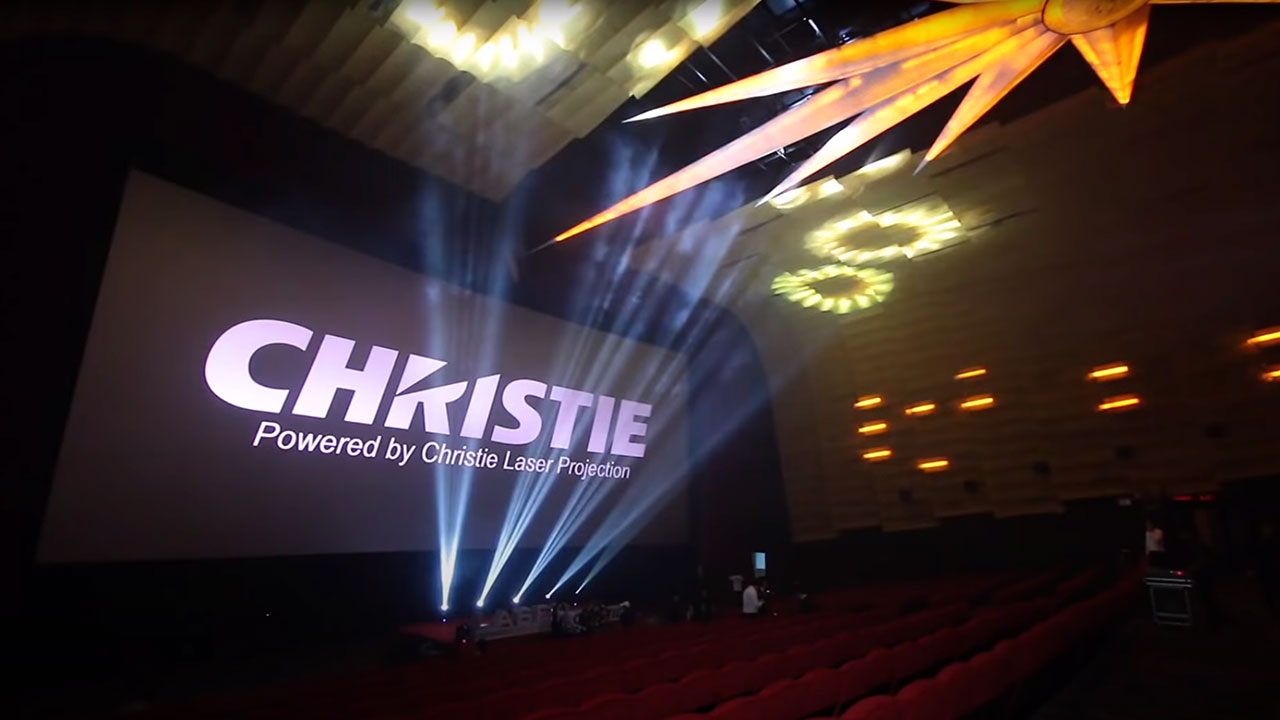

科视数字是一家历史悠久的知名公司，以其先进的投影技术而闻名。科视成立于 1929 年，自 20 世纪 60 年代起便开始制造投影机，并已成为全球影院、商业和专业 AV 投影机领域的领导者。
科视Christie以突破投影技术的极限而闻名，专注于提升画质、亮度和互动功能。这一承诺助力树立了新的行业标准。
科视Christie DWU1400-GS的主要特点：
高效蓝色激光荧光光源
12,000 ANSI 流明（14,250 ISO）亮度
20,000 小时可靠照明（亮度 50%）
专为全天候使用而设计
WUXGA分辨率（1920 x 1200）
1 芯片 0.67 英寸 DLP，带 4 段 RGBY 色轮
动态对比度：6,000:1（启用 RealBlack 时为 4,000,000:1）
包括科视Christie Twist软件，可轻松实现边缘融合和对齐
支持使用 Christie Twist 和 Mystique 相机进行手动或自动变形和混合
兼容科视智能相机，实现自动对焦和色彩校准
七个可选镜头，包括一个超短焦镜头
遥控变焦、对焦和镜头移位
可任意方向安装（360度）
环保模式可降低亮度和噪音，延长灯泡寿命
支持全高清 3D 内容和画中画虚拟会议
用于医学图像查看的 DICOM-DIM 模式
符合 TAA 标准
尺寸：21.9 x 18.9 x 7.5 英寸（555 x 480 x 190 毫米）
重量：50.3 磅（22.8 千克）（不含镜头）
享有 5 年保修
科视数字投影机具有强大、可靠的性能和众多功能，是满足专业投影需求的首选。
硬件

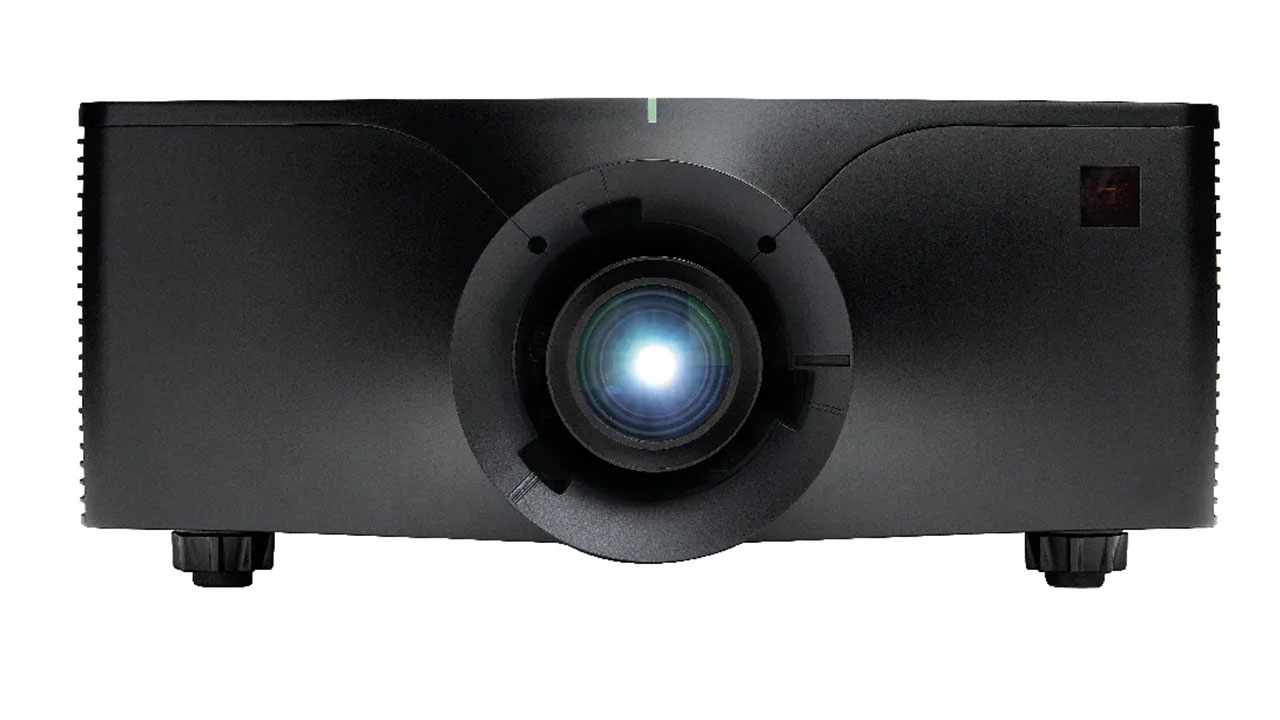

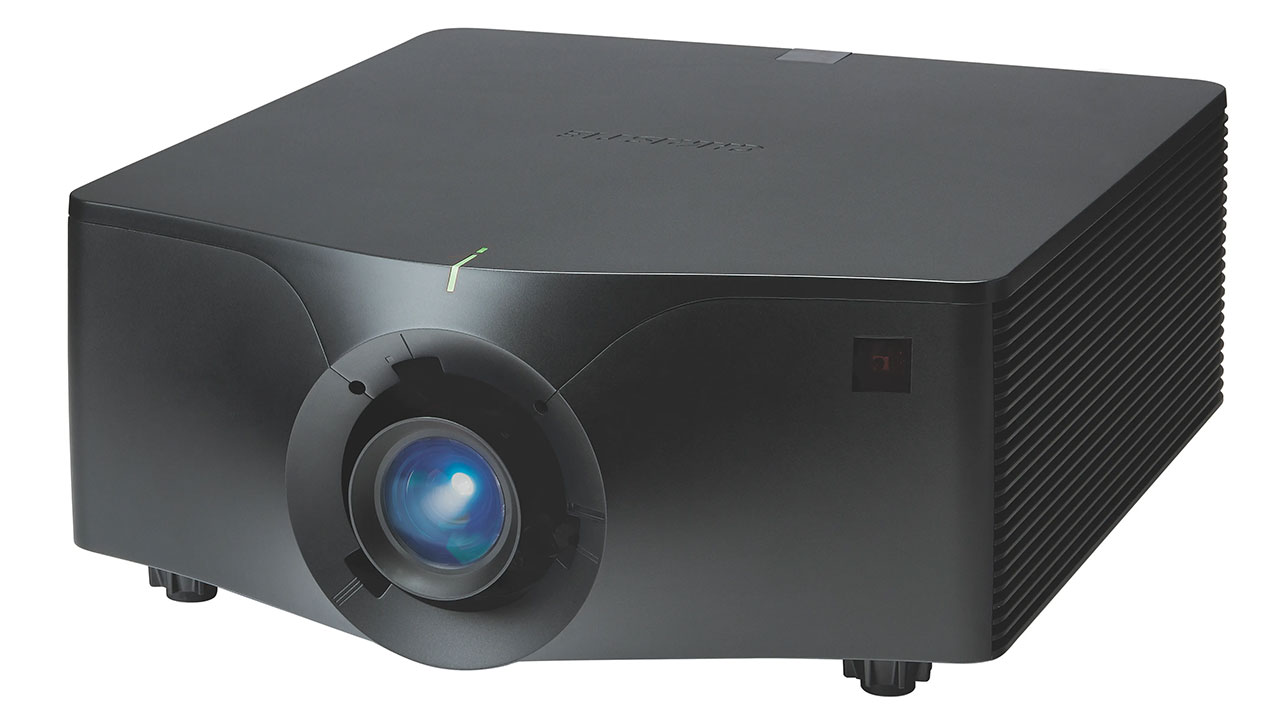

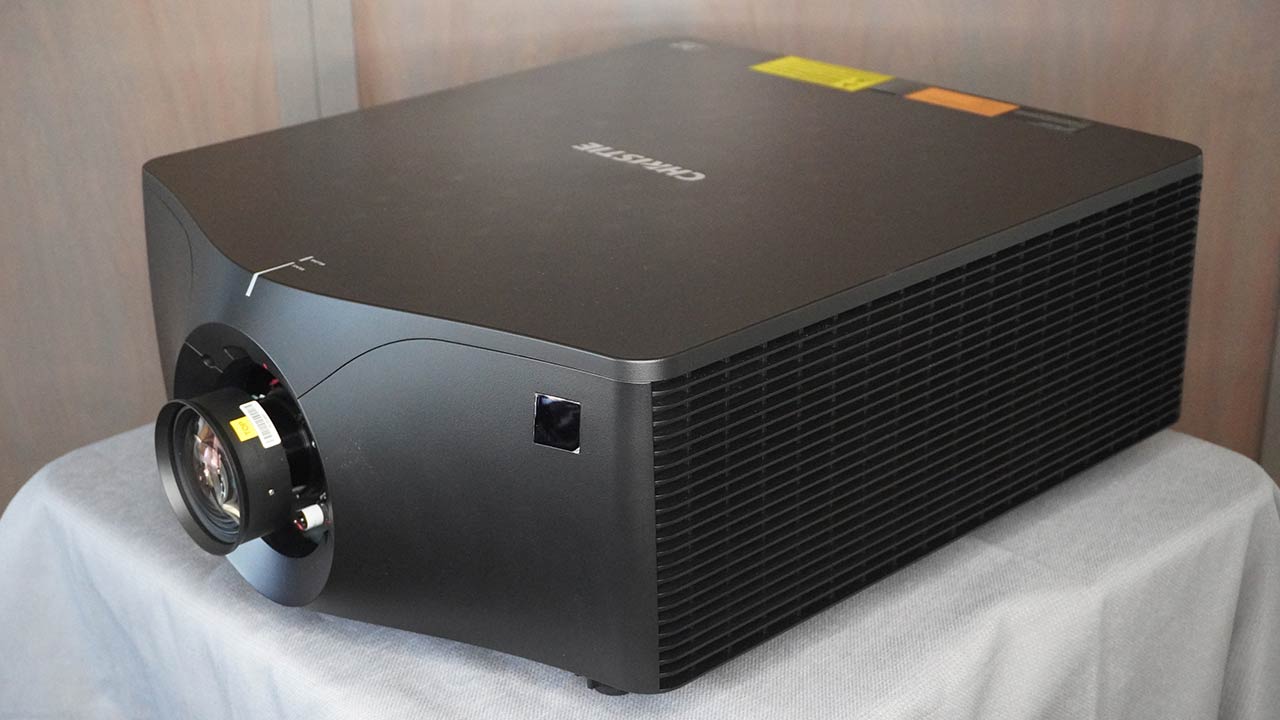

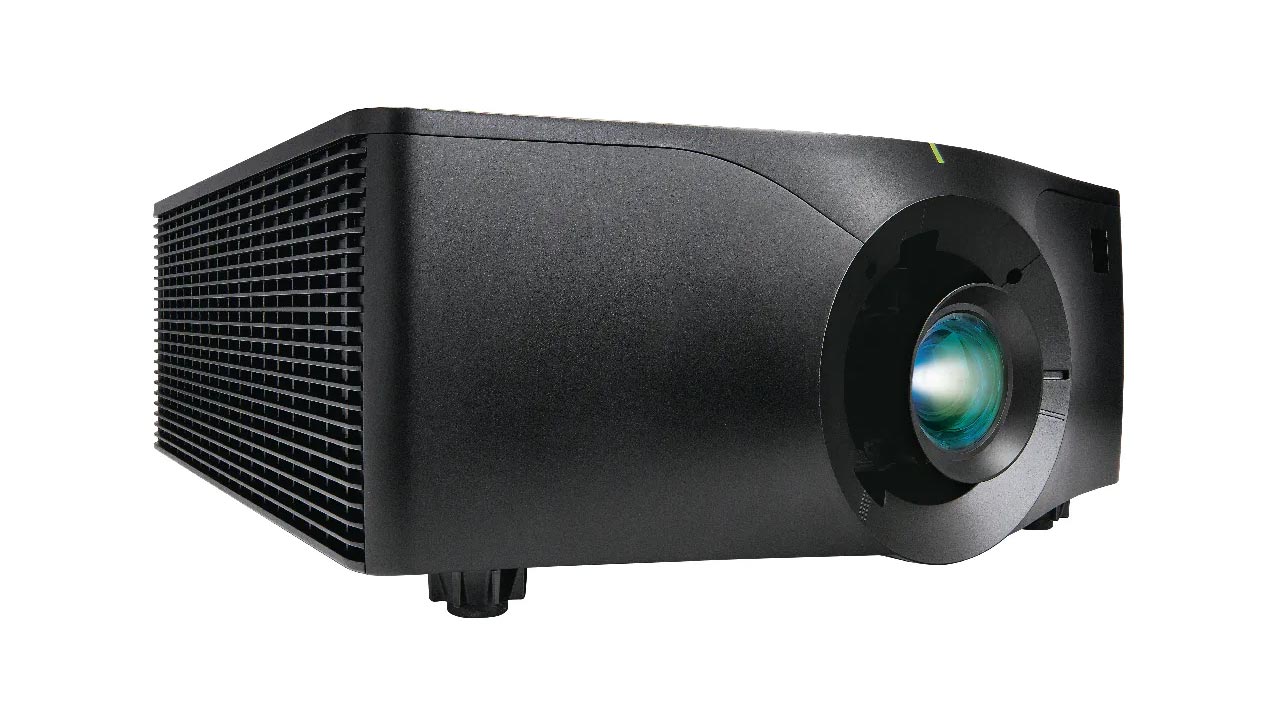

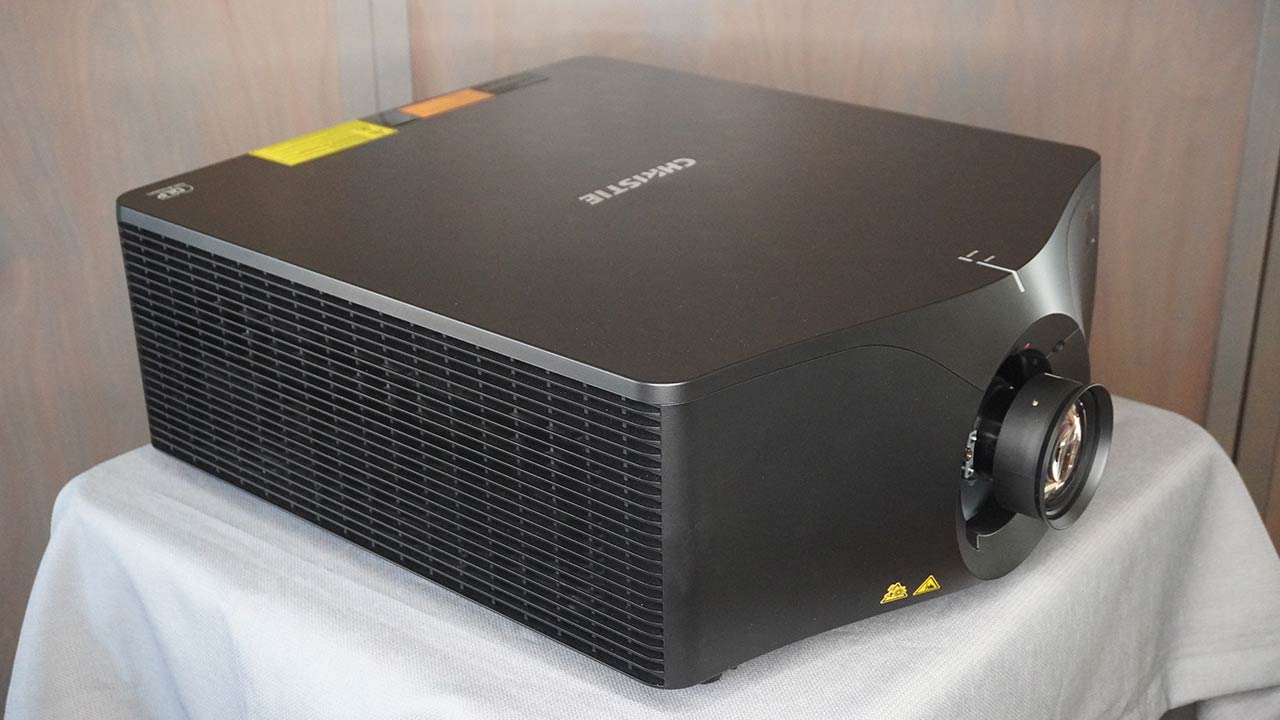

机壳

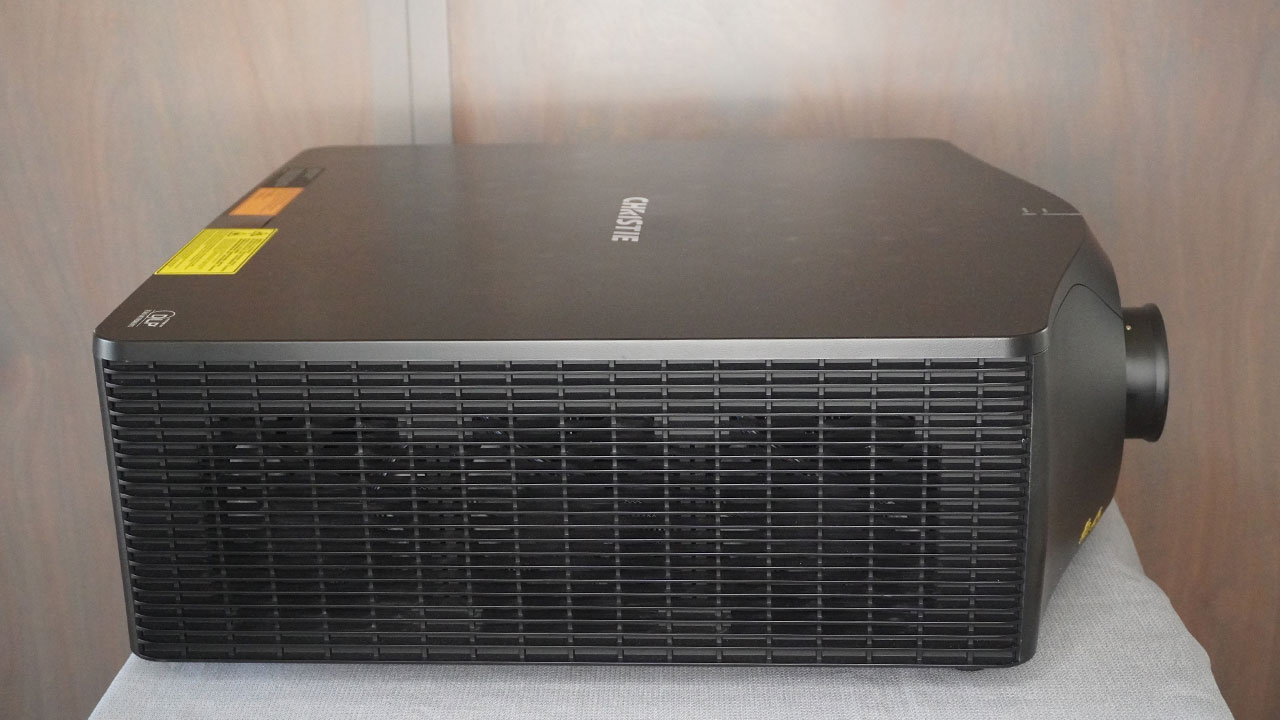

The DWU1400-GS measures 21.9 x 18.9 x 7.5 inches (555 x 480 x 190 mm) and weighs 50.3 lbs (22.8 kg) without a lens. When placed on a table, its lens is right in the center of the front panel, with an IR sensor on the upper right. The sides of the projector are for ventilation—one side pulls air in, and the other pushes hot air out to keep it cool.
The fan noise is rated at 37 to 40 dB, which is quieter than expected for such a bright projector. This noise level won’t bother users in the typical places where this projector is used, as the fans are mostly unnoticeable in those environments.

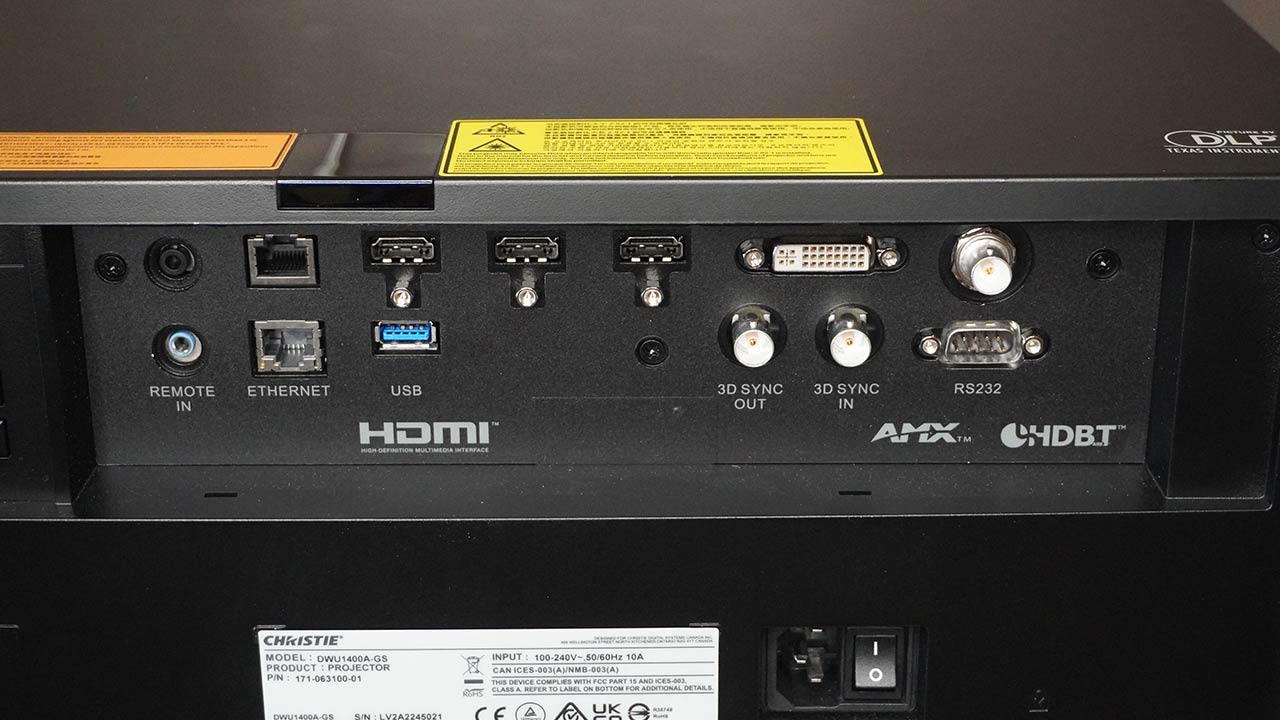

CHRISTIE INPUTS AND CONNECTIONS
This projector has many input and connection options.
All the inputs, connections, and control panel are located on the back of the projector. You can find a full list of these in the chart below.
LENS
The Christie DWU1400-GS doesn’t come with a lens. But Christie offers seven lenses that work with it, including a special Ultra Short Throw (UST) fixed lens with autofocus. If you use the UST lens, you’ll also need a support bracket to hold its weight and reduce vibration. This keeps the image steady, even if the projector is mounted facing down or sideways.

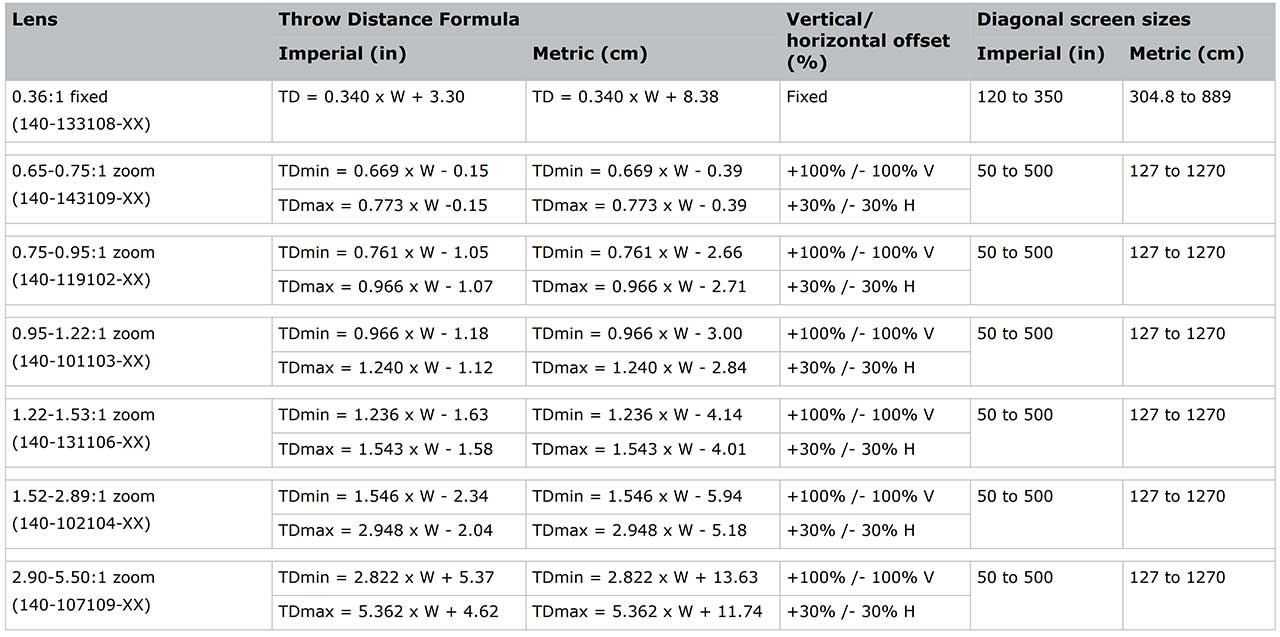

Besides the UST lens, there are six zoom lenses available for this projector. The chart below shows details and throw ratios for each lens.
The projector allows motorized adjustments for lens position (horizontal and vertical offset), zoom, and focus with compatible lenses.
CHRISTIE TWIST EDGE BLENDING AND WARPING SOFTWARE

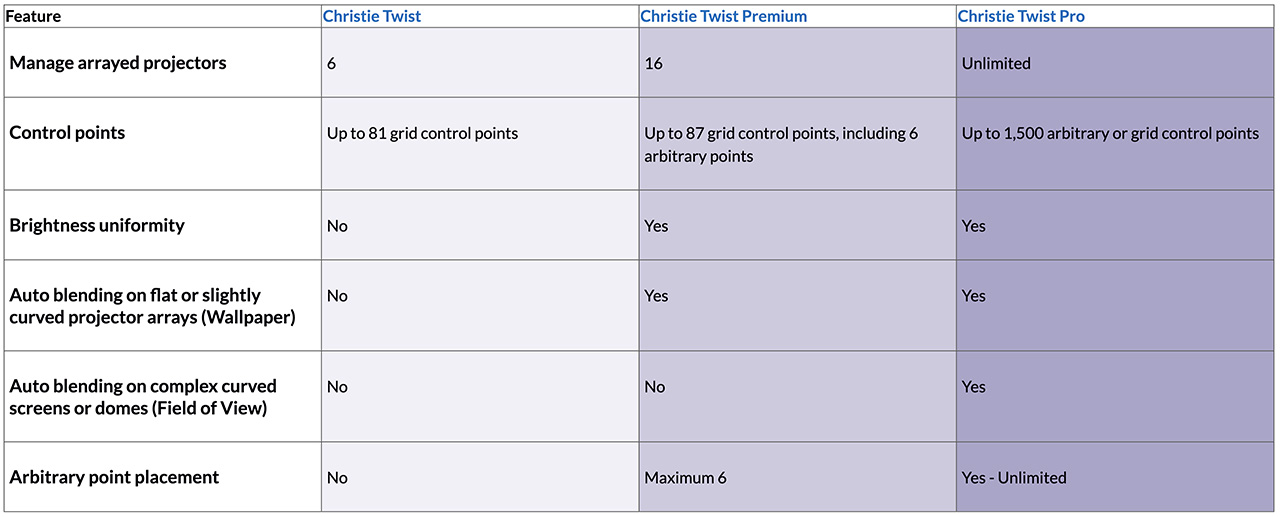

The chart above shows the main differences between the three versions of Christie Twist software.
Christie Twist is custom software made by Christie to make warping and blending easier with the DWU1400-GS and other Christie projectors. It helps technicians control multiple projectors to show any image on any surface, keeping the picture aligned and looking right. Twist also lets operators control projectors over a network, with a virtual remote inside the software that works like a normal remote.
Christie Twist is free to download. The Premium and Pro versions cost extra and add more features for bigger, more complex projects. For example, Twist Pro lets you place unlimited setup points for better accuracy.
The Christie Twist family has three software levels, each for different needs. It can handle simple multi-projector setups for flat screens or advanced projection mapping on any surface. It works well for trade shows, classrooms, boardrooms, museums, churches, casinos, and even complex spaces like virtual caves and domes.
CHRISTIE MYSTIQUE CAMERA-BASED AUTO-CALIBRATION
Christie Mystique is an automated system that uses a camera to help quickly set up, align, calibrate, and maintain multiple projectors. When used with any version of Christie Twist, Mystique can automatically adjust images from one or more projectors, even on tricky or oddly shaped screens. This saves a lot of time and effort in big installations.
Christie has now made Mystique work not only with its high-end 3DLP projectors but also with the GS 1DLP series, including the DWU1400-GS reviewed here. Mystique can even handle setups mixing different Christie projector models, like 3DLP and 1DLP, and keep everything aligned perfectly.

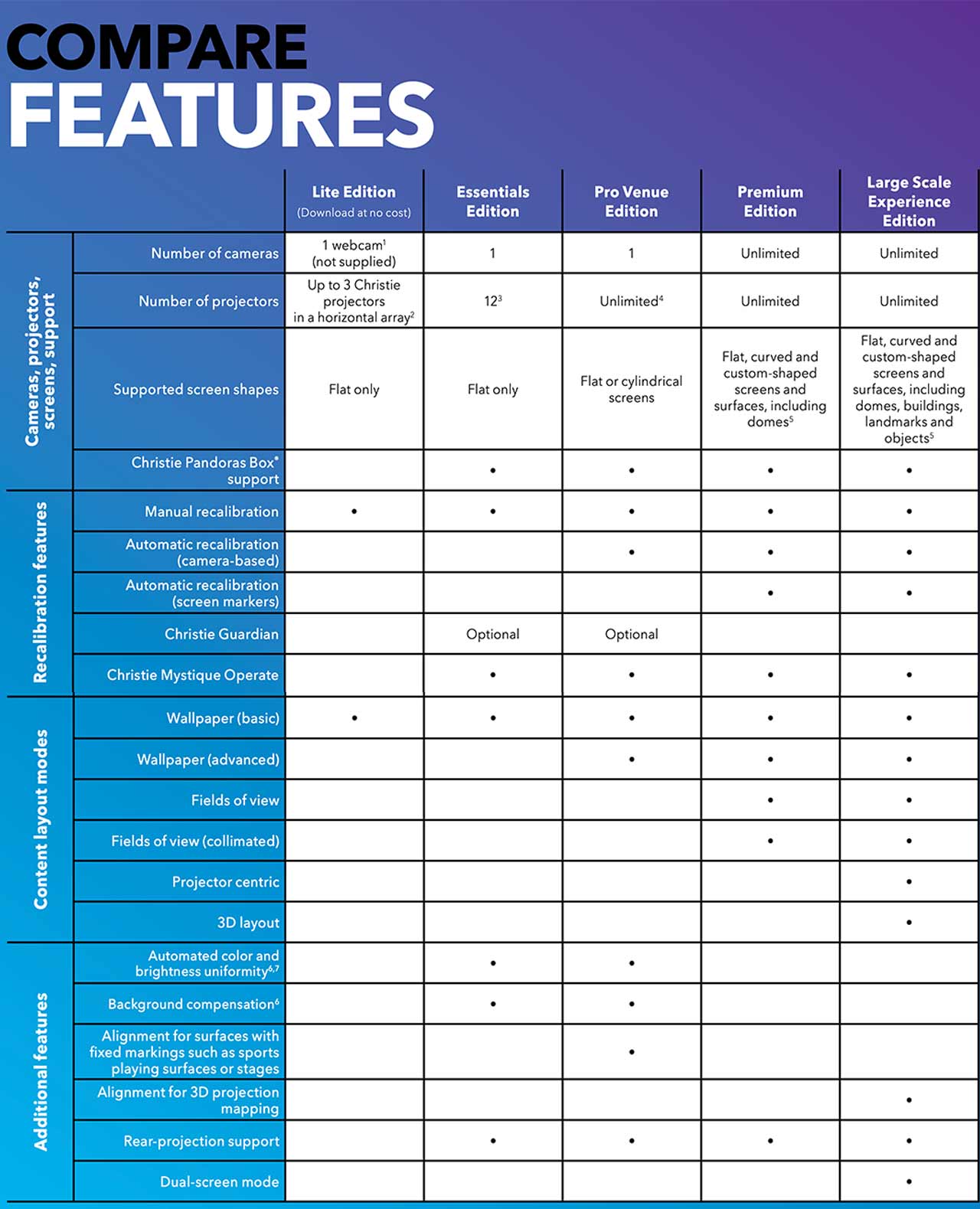

There are five versions of Mystique. Like Christie Twist, the basic version is free, and there are four paid editions with extra features for more complex setups and special screen types.

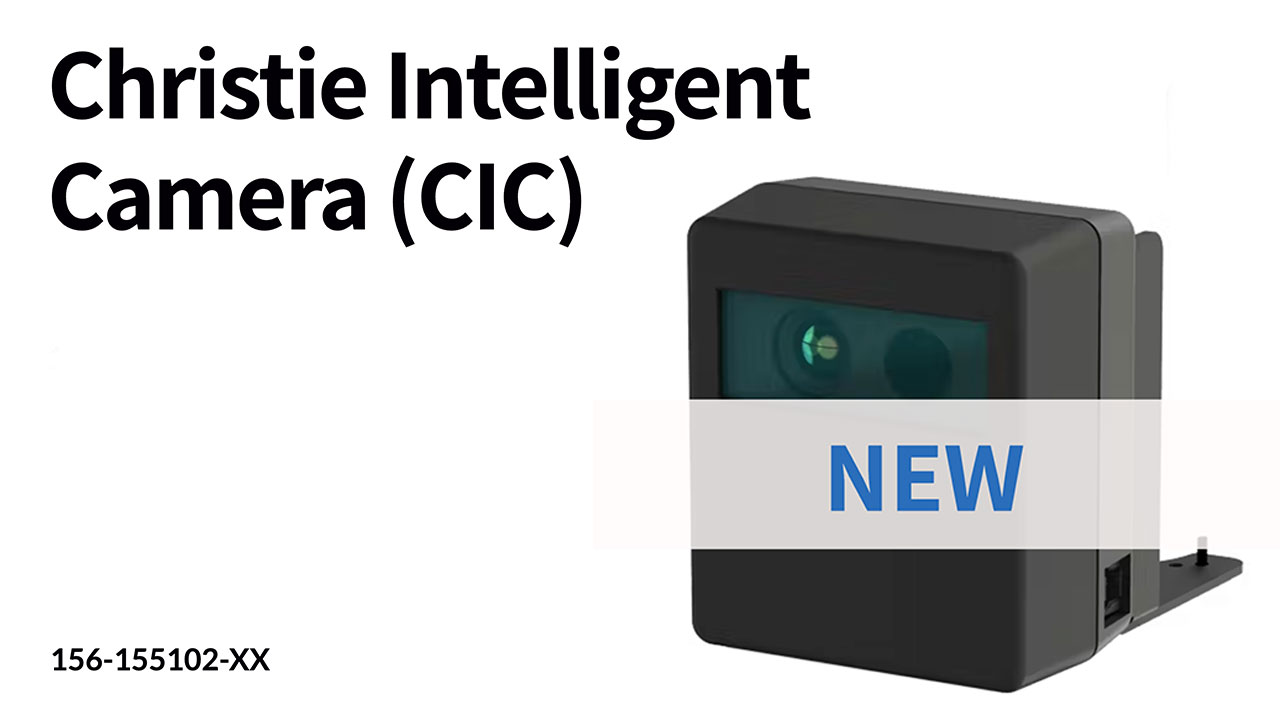

CHRISTIE INTELLIGENT CAMERA (CIC)
The Christie Intelligent Camera (CIC) is a powerful accessory that works with Christie Mystique and Twist to make setup much easier.
When used with the DWU1400-GS and other Christie projectors, the CIC helps speed up the process by automatically focusing the projector and adjusting colors for better image quality. It can even fix colors if the screen isn’t perfectly white, making the picture look just right.
For a detailed explanation and demo, check out the video around the seven-minute mark.
When used with any Mystique software version, the CIC camera makes setting up multi-projector systems easier. It automatically matches color and brightness across projectors and handles warping and blending for up to three projectors in a row.
The CIC is a dual-lens USB camera that comes with a USB cable and brackets for easy mounting. You need one camera for each projector in multi-projector setups, except when using CIC with Mystique software for automated warping and blending.
REMOTE
The remote control has many features but no backlight.
The top has POWER and STANDBY buttons. Below are buttons for GAMMA, BRIGHT, CONTRAST, HOTKEY, PIP, SIZE, LAYOUT, and SWAP. There’s also a numbered keypad that lets you quickly select projector inputs.
Next, there are menu navigation buttons: MENU, RESET, arrow keys, and an ENTER button in the center.
The last section controls KEYSTONE (horizontal and vertical) and LENS SHIFT (horizontal and vertical).

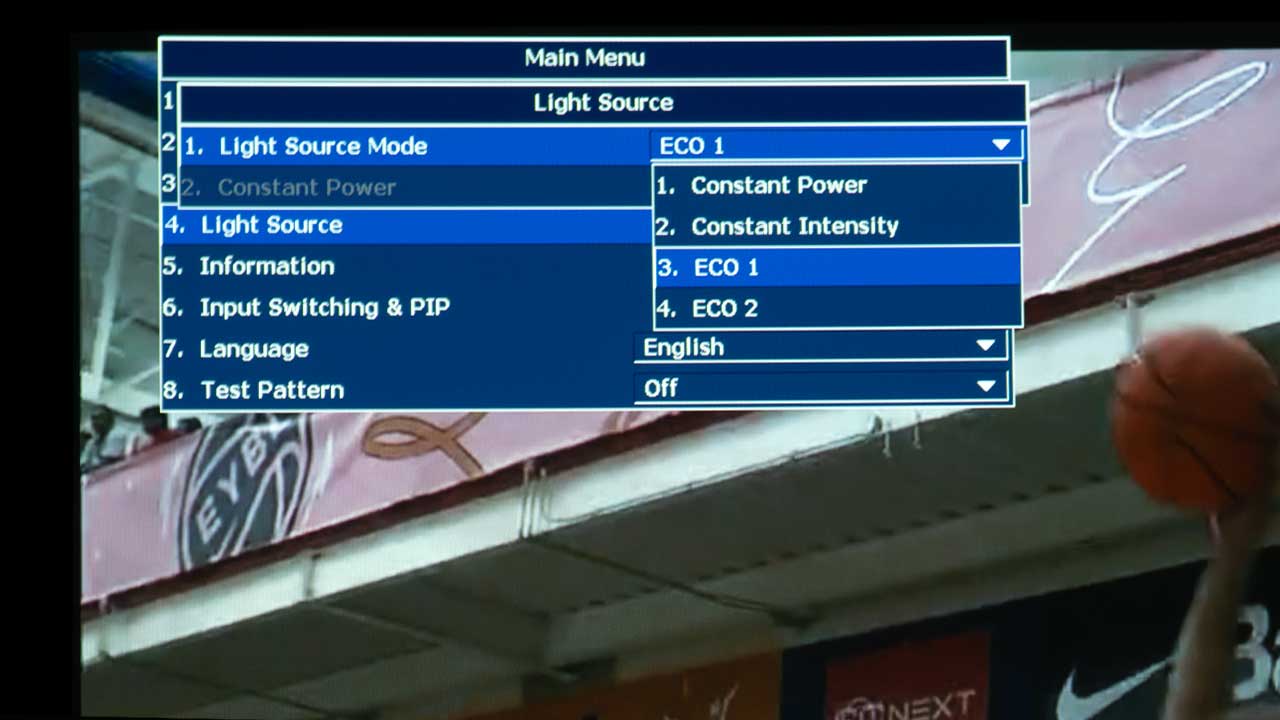

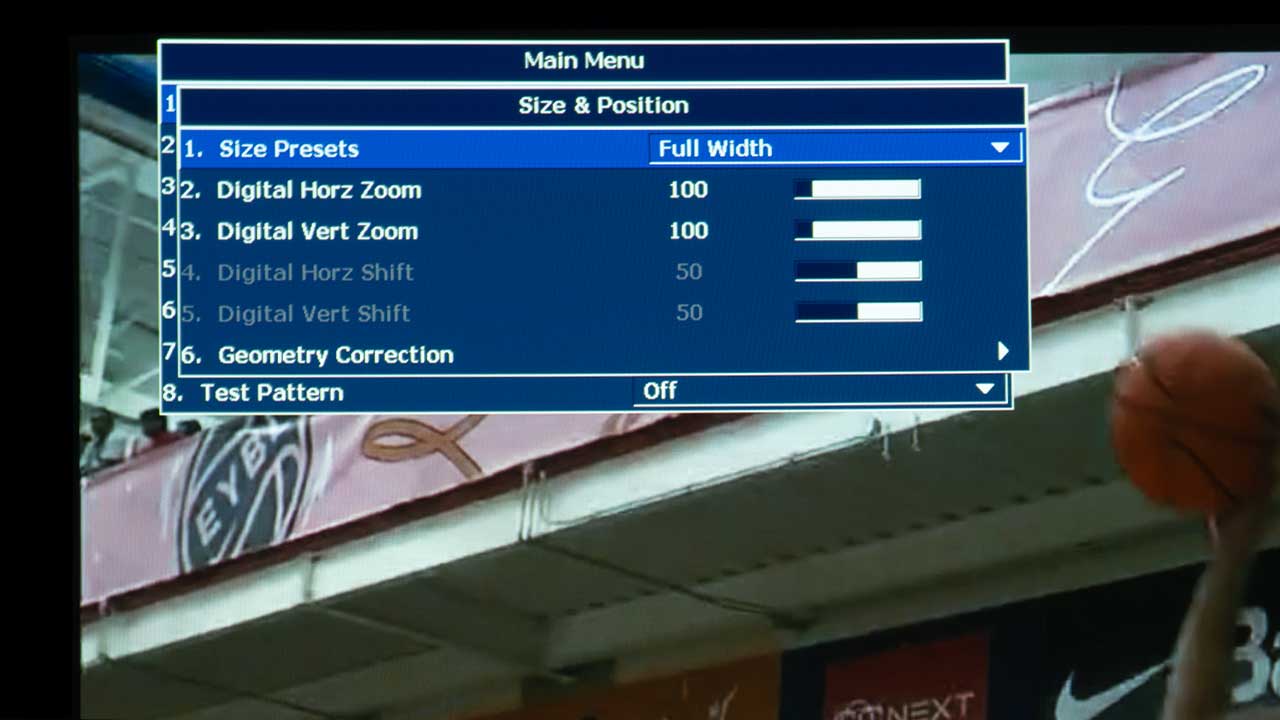

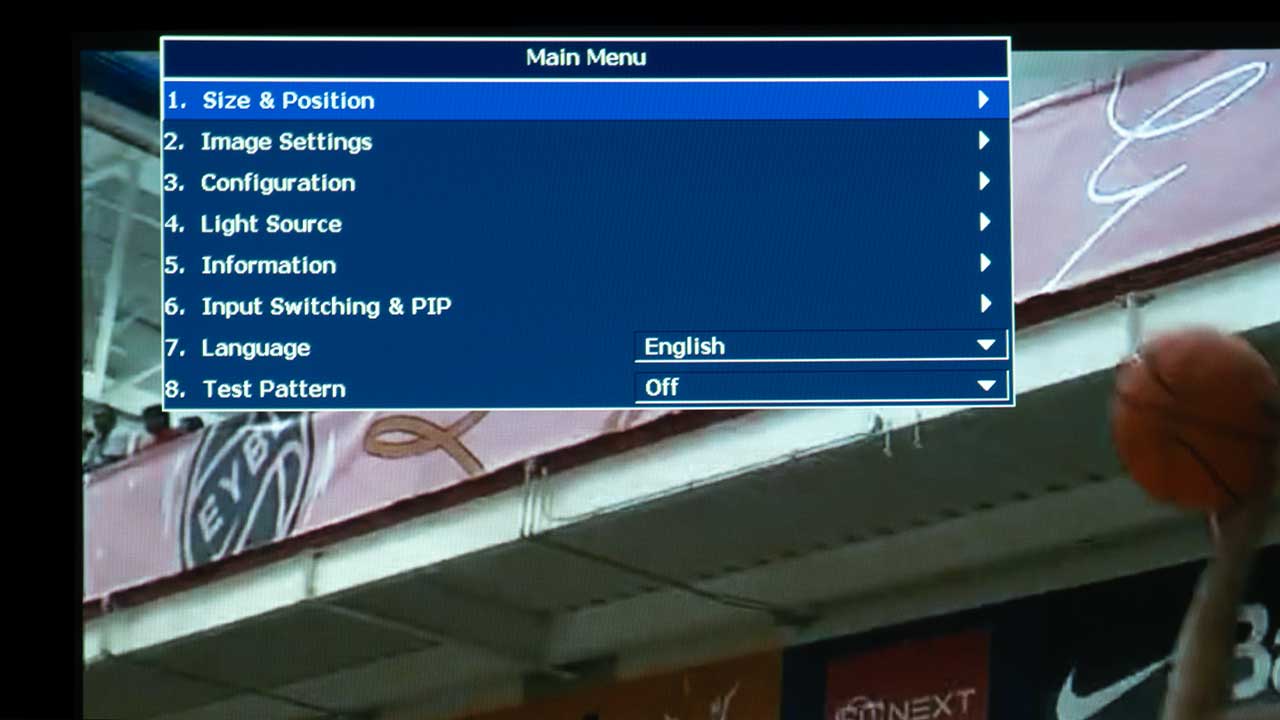

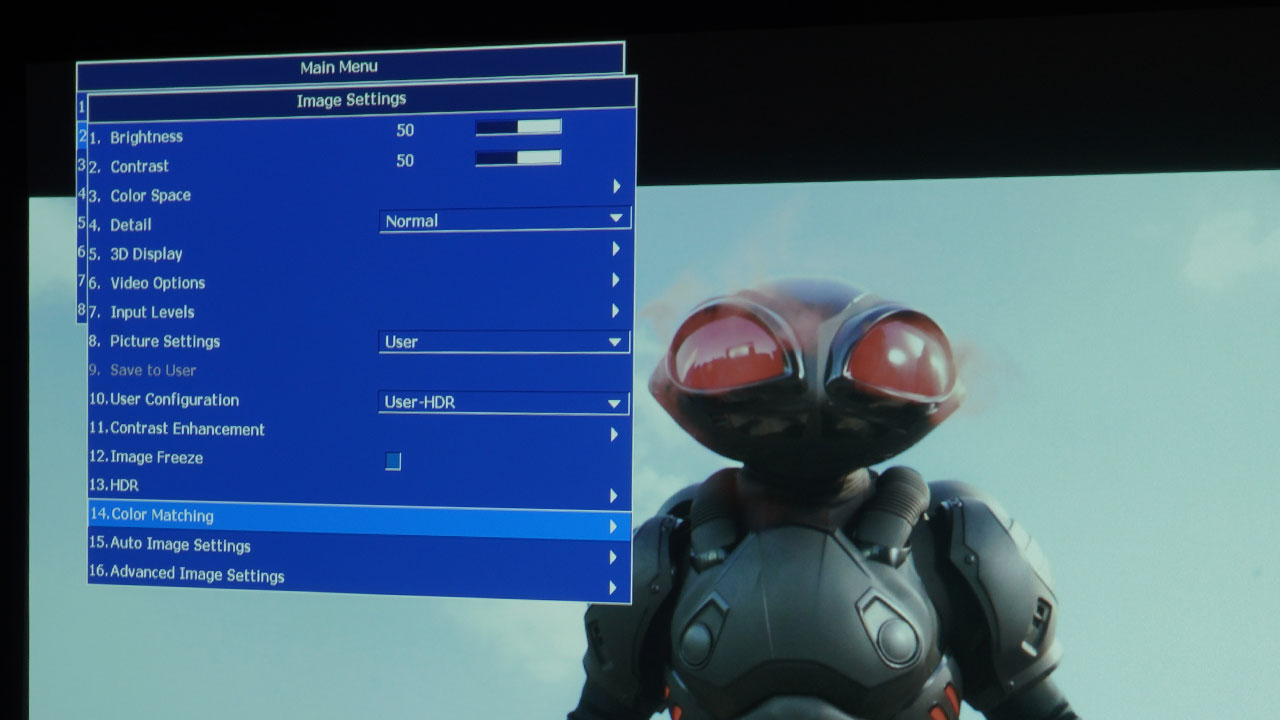

MENUS

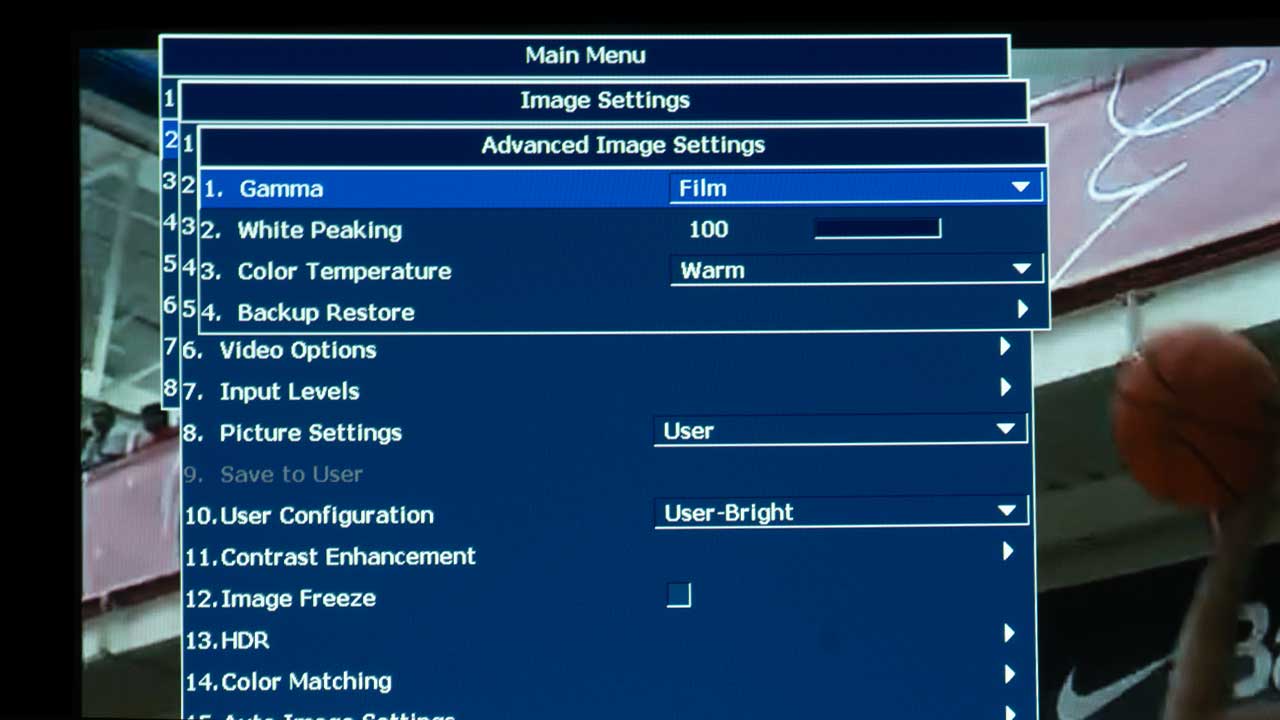

The Christie DWU1400-GS has a simple and easy-to-use menu system. It includes all the common settings and advanced options. The menu shown here is just a small part of what’s available. Overall, Christie’s menu is well-organized and easy to navigate.
PERFORMANCE

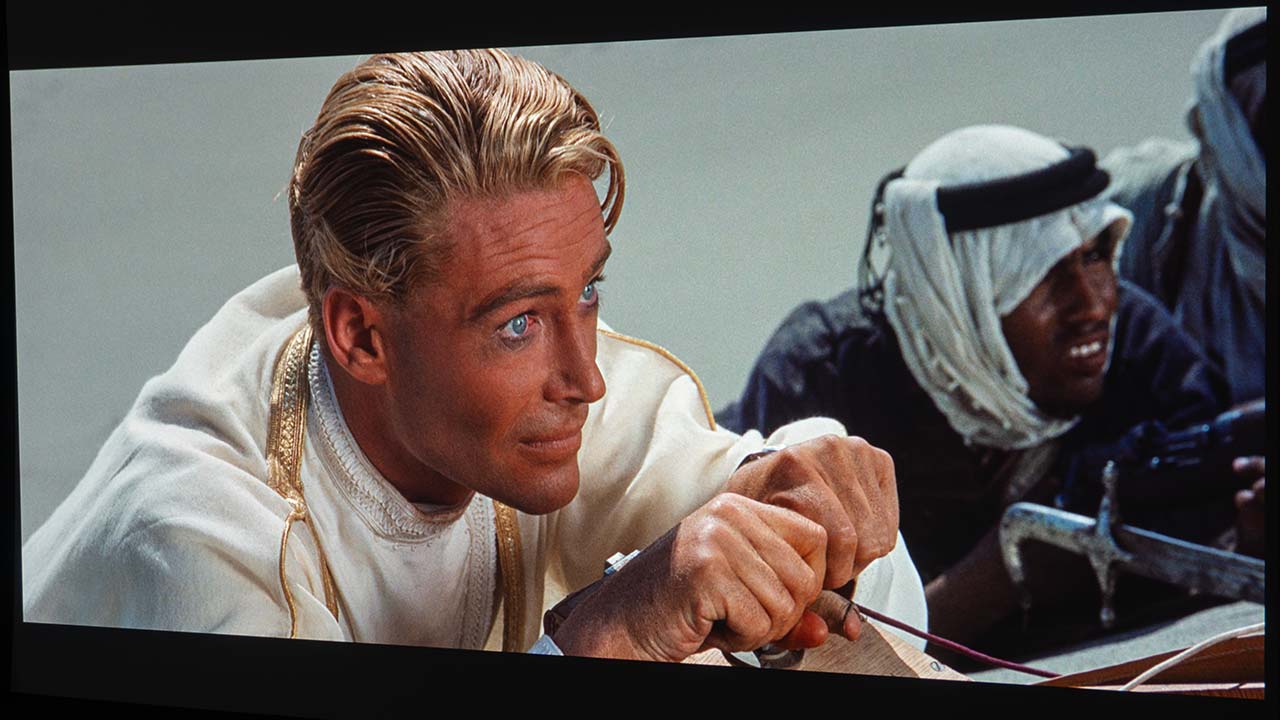

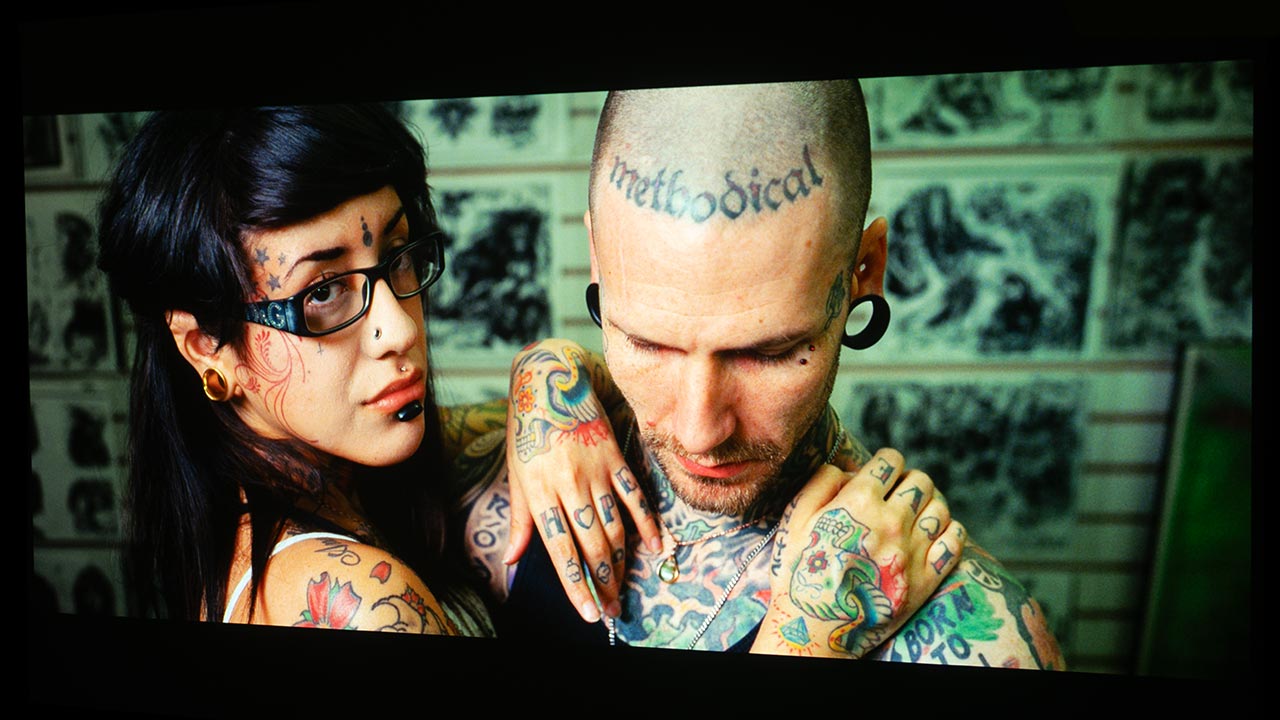

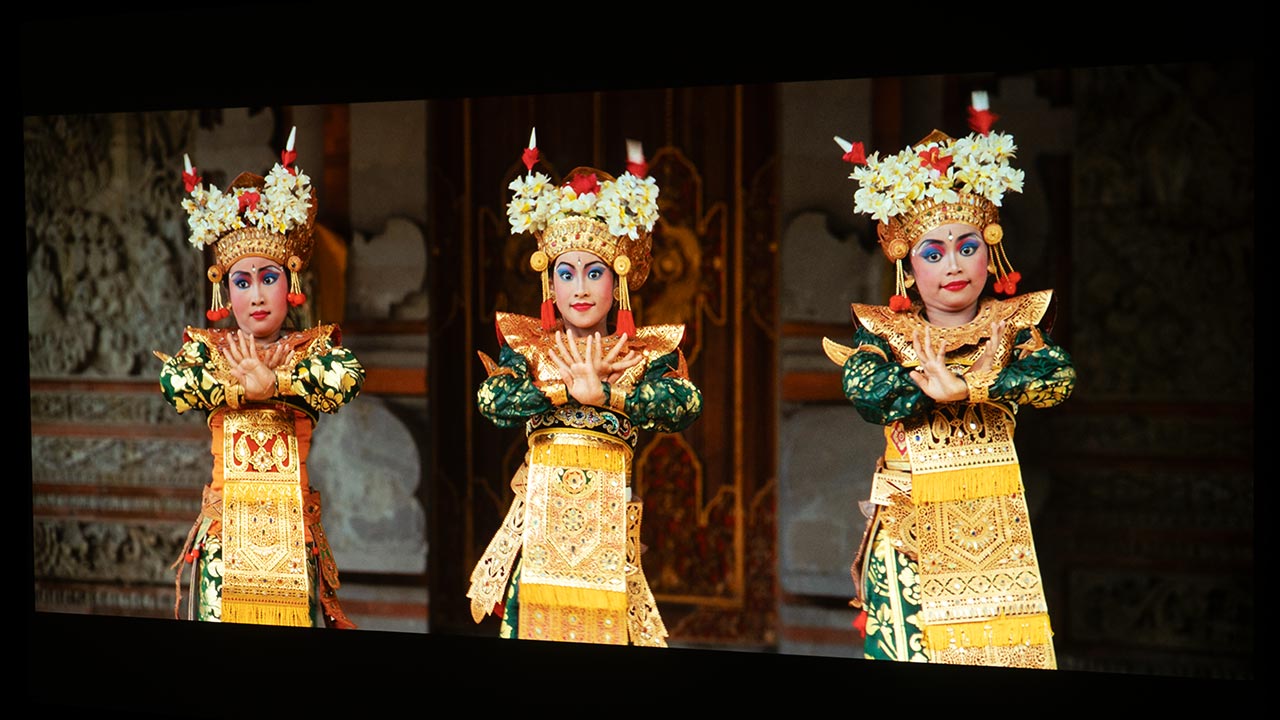

COLOR
Christie lets users easily adjust the projector’s image settings, including color, as much or as little as they want. Since the DWU1400-GS is a professional projector, its color isn’t as perfectly tuned right out of the box as a home theater projector.
I lowered the projector’s brightness by about 50%, which looked much better than full power in my testing. Even then, it was bright enough to handle ambient room light. The images looked great, with rich colors that really stood out—even with the lights on.
The projector has nine preset picture modes, and users can customize each one. Christie’s guide explains what each mode is for.
Most presets tend to have a bluish tone because projectors set to be very bright often look that way. If you want a warmer image, you can change the color temperature to Warm or Warmest.
Here are the main preset modes:
Video: For theater use. Sets color temperature to 6000K and brightness to 70%.
Bright: For big or very bright spaces. Sets color temperature to 7500K and brightness to 100%.
Enhanced: For rich, vivid colors. Based on Bright mode.
REC709: For HDTV content. Sets color temperature to 6500K and brightness to 80%.

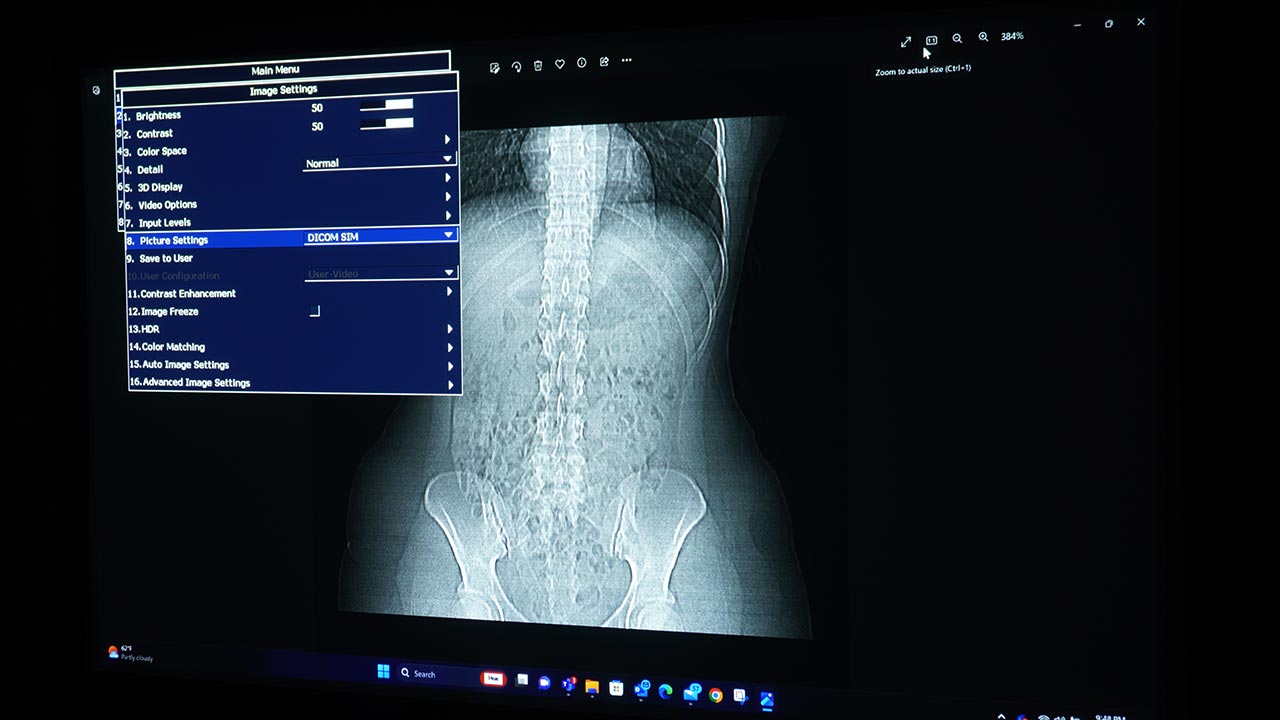

DICOM SIM: For high-contrast images like X-rays. Sets color temperature to 7500K and brightness to 65%.
Blending: For using multiple projectors. Sets color temperature to 7000K and brightness to 85%.
HDR: For high dynamic range content with deep blacks and bright whites using REC.2020 color.
3D: For 3D content.
2D High Speed: For 2D input at 120 Hz.
User: Allows custom settings based on the above modes.
HIGH DYNAMIC RANGE
The DWU1400-GS projector is mainly used in places like colleges, churches, conferences, and smaller entertainment venues to show mostly SDR (Standard Dynamic Range) content. But it also supports HDR10 for better flexibility with High Dynamic Range content.
This projector has four HDR effect settings you can choose from to fine-tune HDR playback:
HDR1: Low HDR effect, makes bright images more colorful.
HDR2: Medium HDR effect, makes standard images look more natural.
HDR3: Medium HDR effect, improves details in videos.
HDR4: Strong HDR effect, enhances details in dark scenes.

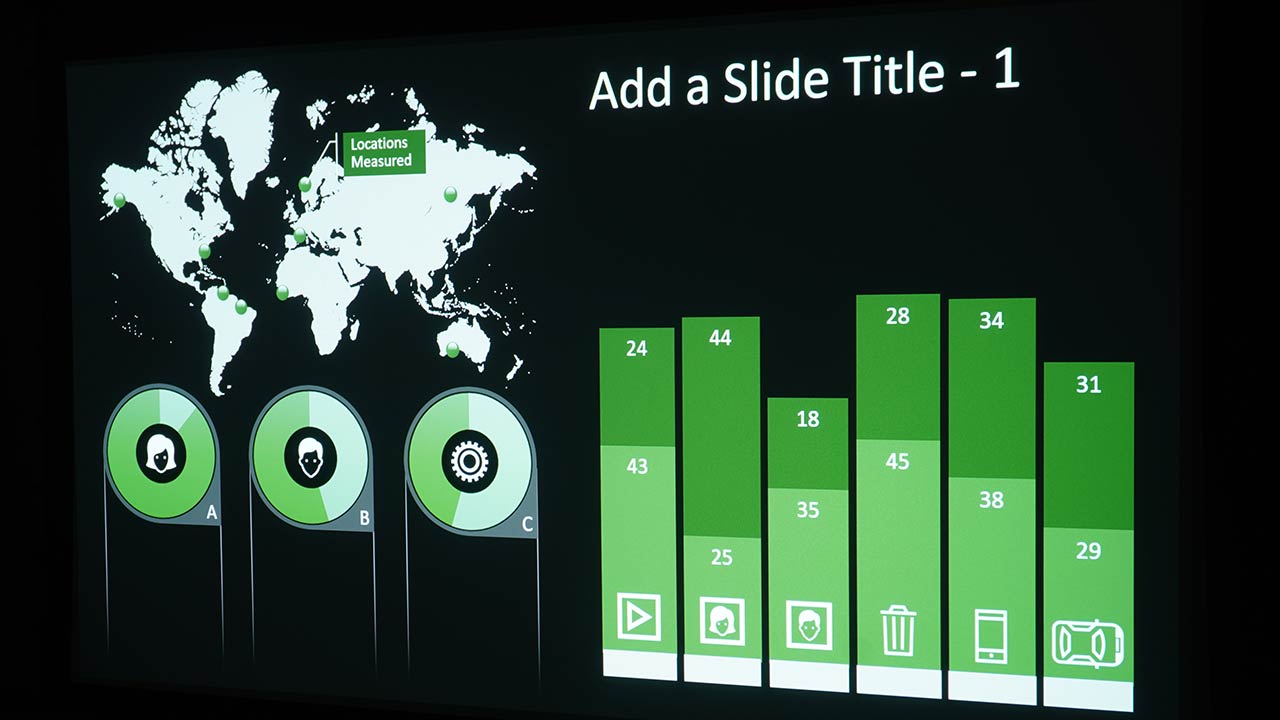

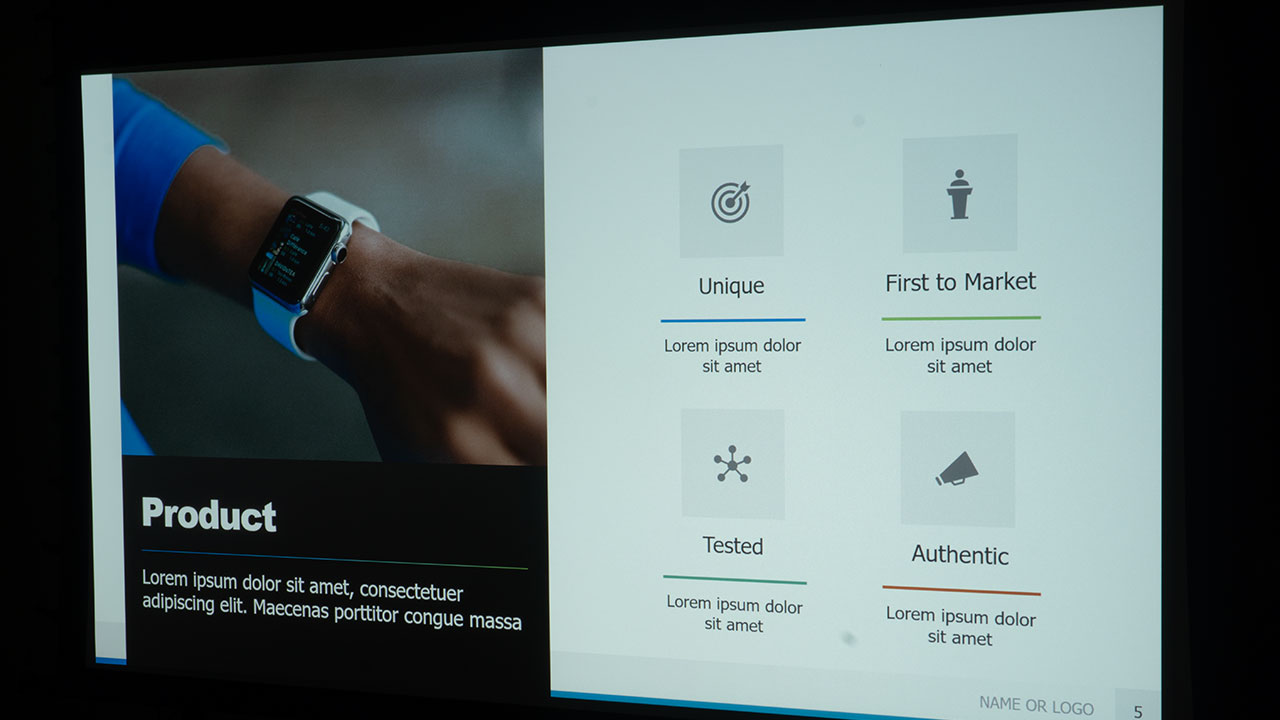

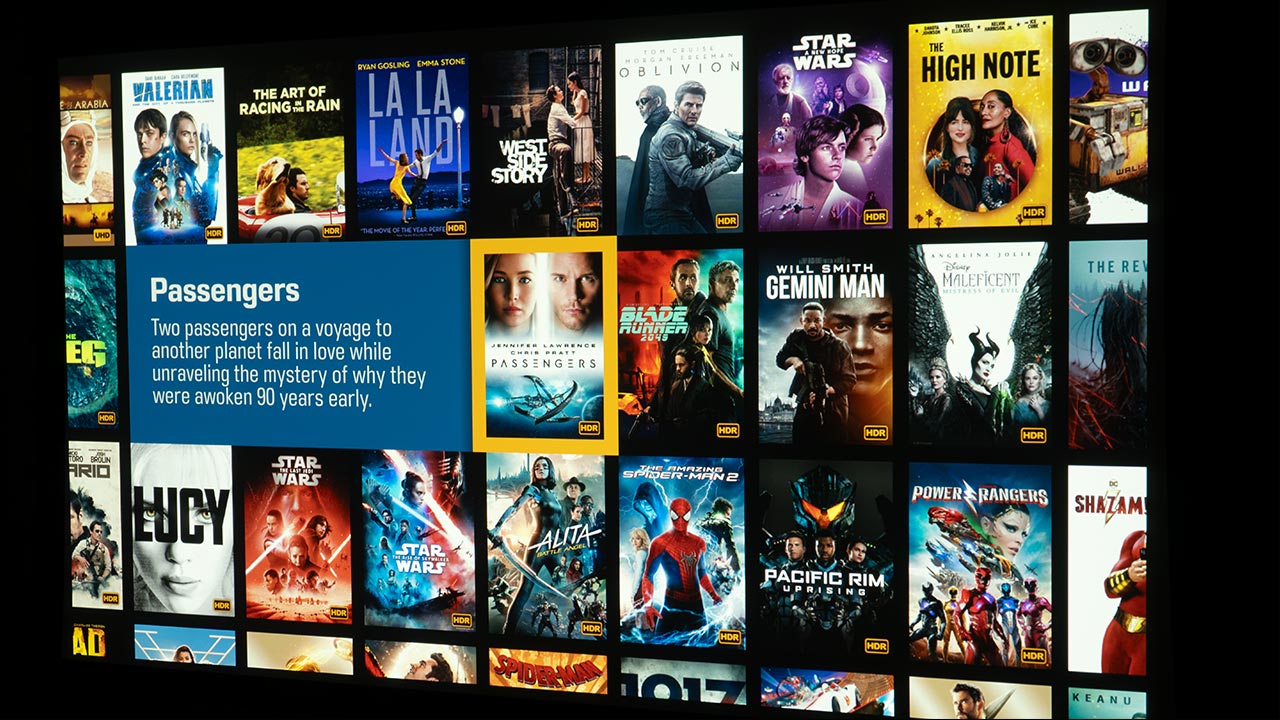

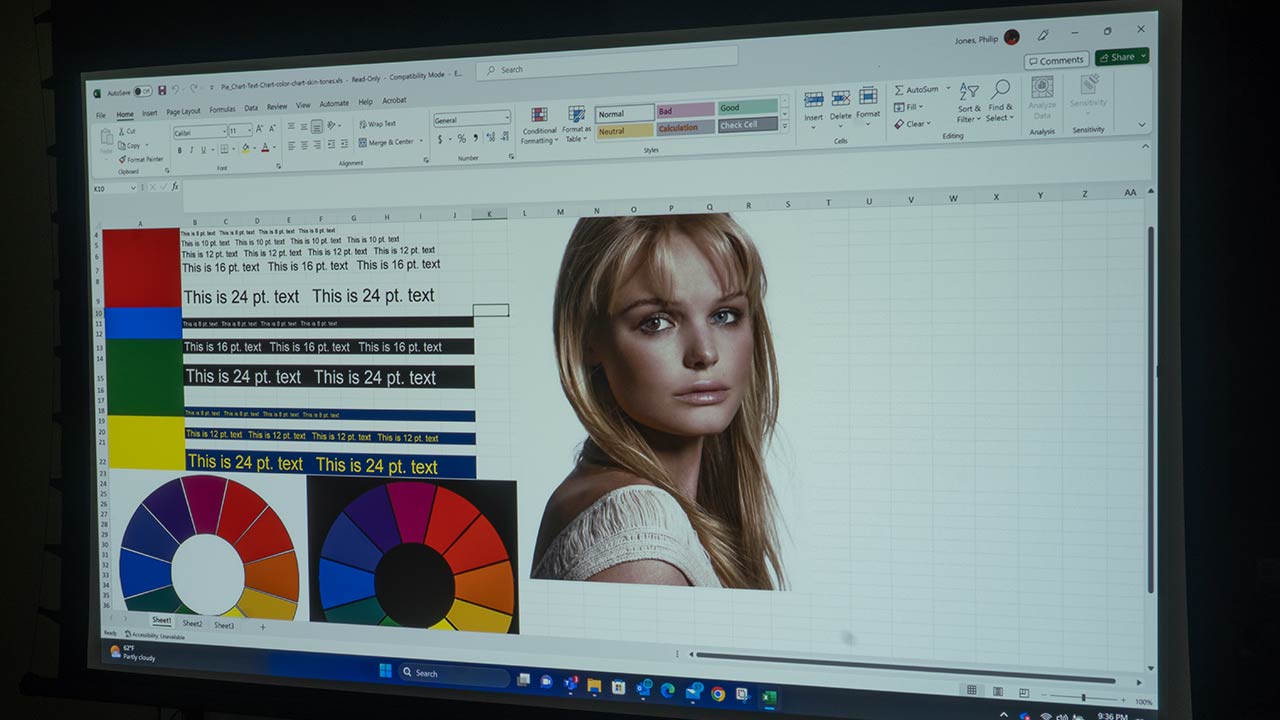

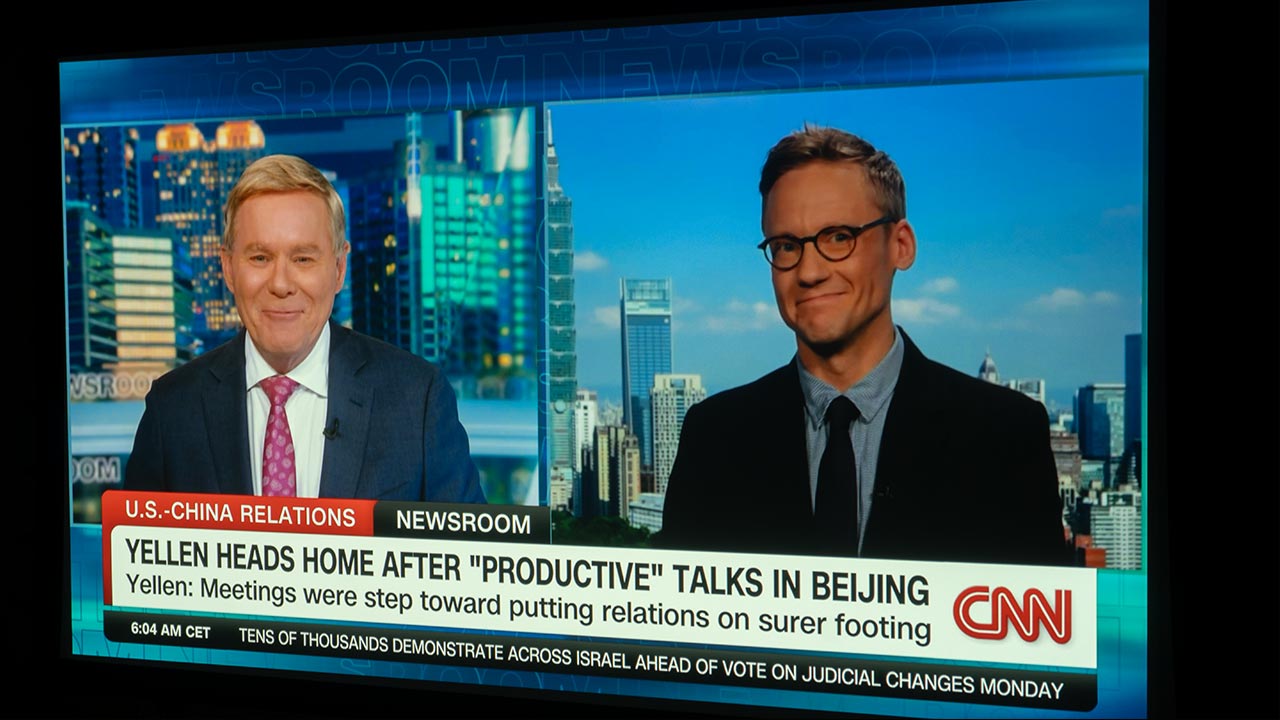

TEXT AND PRESENTATION
This projector really shines when showing text and presentations. It’s clearly designed for this, with bright colors and strong contrast that make content easy to see up close or from far away, even in bright rooms. Presentations look great on the Christie DWU1400-GS, no matter the lighting. It also offers seven color space presets: AUTO, RGB, RGB FULL, RGB LIMITED, YUV, REC709, and REC601.
The Christie DWU1400-GS is the brightest projector in Christie’s GS line, rated at 12,000 ANSI lumens. Honestly, it was too bright for my 100-inch screen, so I lowered the brightness by setting it to ECO2 mode.
It’s impressive to see such high brightness, especially since not long ago, 2,000-lumen projectors were the standard for rental houses, auditoriums, and ballrooms.
We couldn’t take brightness measurements this time due to equipment issues. But based on past experience with Christie projectors, their brightness claims are usually accurate. We’ll test again once our gear is fixed and update the review. For now, I can say the light output really impressed me.
The DWU1400-GS is a great choice for large spaces or rooms with a lot of ambient light.

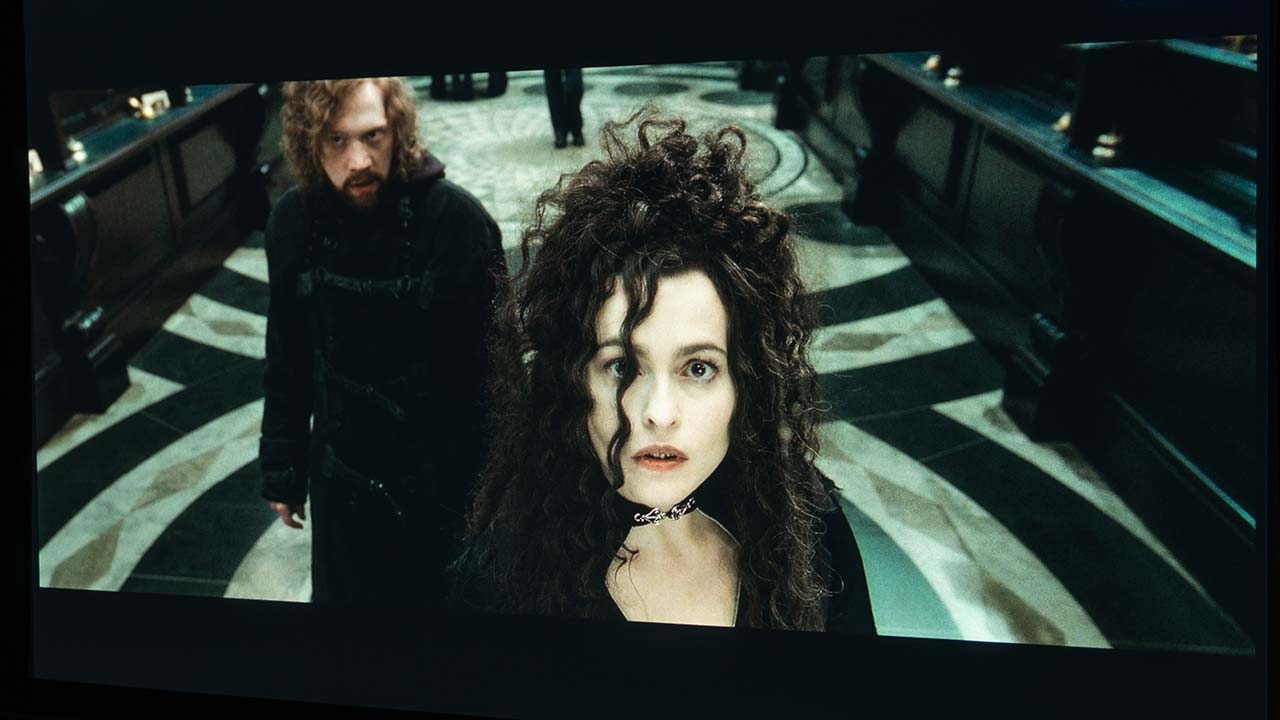

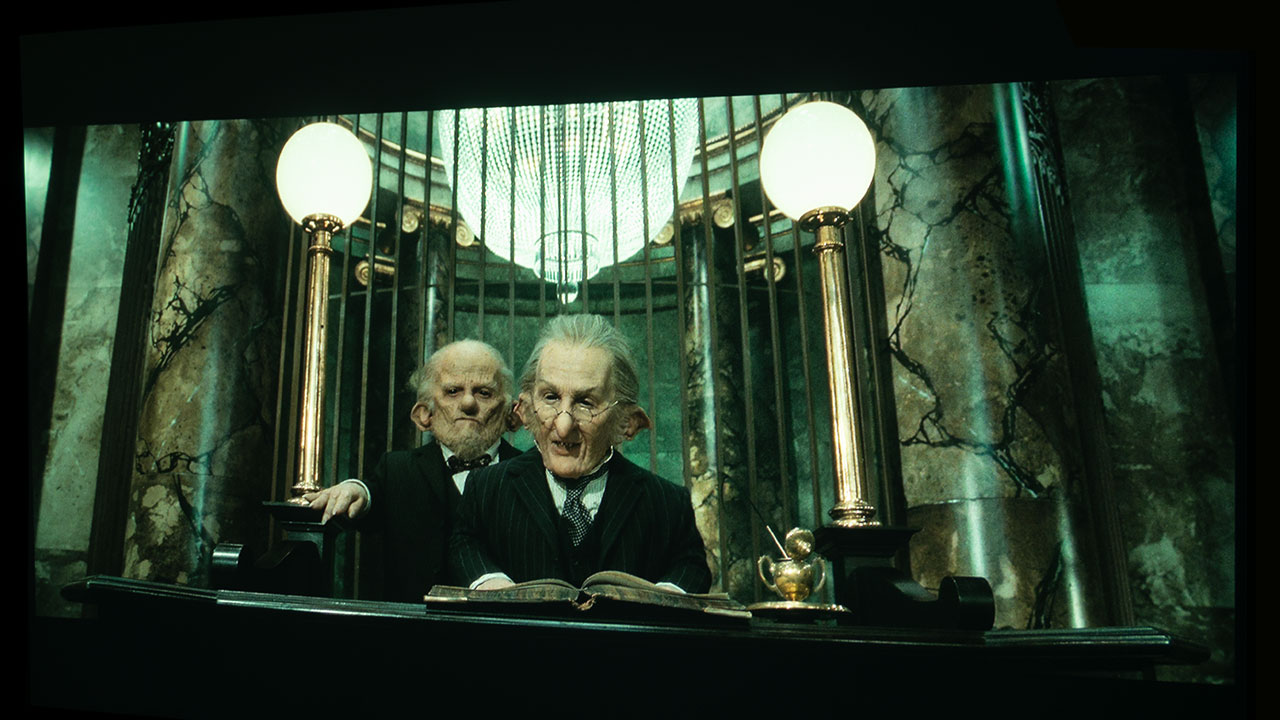

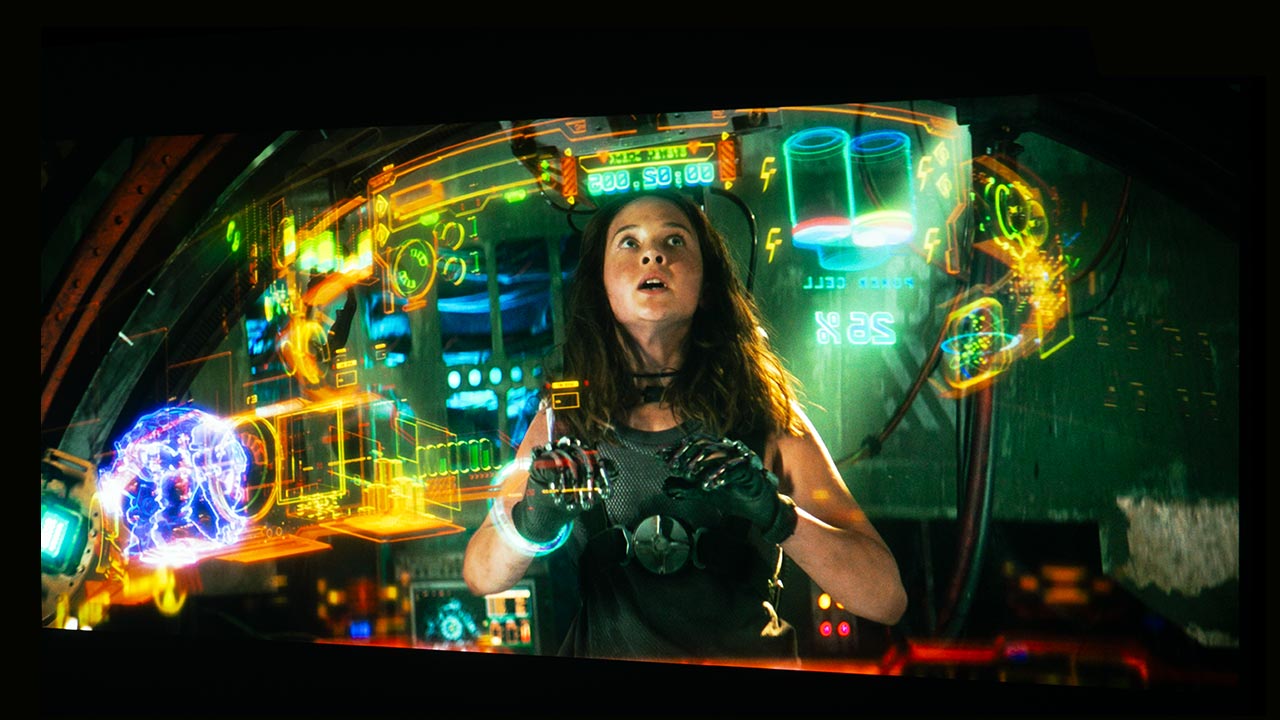

BLACK LEVEL AND SHADOW DETAIL
The biggest strength of the DWU1400-GS—its very high brightness—is also why its black levels are just average. It’s tough for a 12,500 ANSI lumen projector to produce deep, true blacks because of how bright it is.
As expected, the blacks looked more like dark gray. Overall, the contrast and black levels are above average for a 12,000-lumen projector. Christie lists the native contrast ratio at 1,200:1 and dynamic contrast at 6,000:1.
Now, about Christie RealBlack, which claims a contrast of 4,000,000:1. There’s not much info available on how it works. From what I saw in trade show demos, Christie reps mention the high number but don’t explain much.
RealBlack works when the screen is fully black. The projector can then turn off its lasers to show a true black frame. But you won’t get that extreme contrast during normal dark movie scenes with lots of detail. RealBlack mainly helps hide visible lines that sometimes appear when fading to black or blending images from multiple projectors.
For real video watching with dark scenes, expect a dynamic contrast around 6,500:1, which means the blacks look more gray than pure black. This projector isn’t meant for professional cinemas or home theaters, but for the venues it’s designed for, its contrast and black levels will meet most users’ needs.
SUMMARY
Calibrating and recalibrating images on projectors can take a lot of time and skill, especially with multiple projectors. Christie is making this easier with tools like Christie Twist, Mystique, and the Intelligent Camera (CIC). These tools automate alignment, calibration, and monitoring, so even complex setups can be done quickly without needing expert technicians.
The DWU1400-GS comes with nine preset picture modes, which is a lot for a professional projector. It also has two ECO modes to save power: ECO1 runs at 80% brightness, and ECO2 at 50%—I used ECO2 for most of my tests.
With a powerful 12,000 ANSI lumens rating, the DWU1400-GS is very bright—too bright for my small test screen but perfect for medium to large venues with uncontrolled lighting.
Christie’s RealBlack tech claims to boost contrast from 6,000:1 to an impressive 4,000,000:1 on paper, but in real use, expect around 6,000:1 dynamic contrast for dark scenes with detail.
The projector supports 18Gbps HDMI 2.0 with HDCP 2.2, so it can handle 4K at 60fps and HDR content. While HDR is more common in home projectors, it’s great to see Christie supporting it in this professional model.
DWU1400-GS 是一款商务级激光投影仪，拥有 WUXGA 分辨率 (1920×1200)，可接受 4K 输入。它亮度高、功能多样，非常适合贸易展览、演讲厅或大型会议室，即使在灯光开启的情况下也能完美呈现。
虽然它不配备镜头，但科视Christie提供了七款电动镜头，包括一款全新的超短焦镜头。这意味着它几乎可以适应任何安装方式，即使是在不常见的表面或屏幕上。
其他功能包括内置变形和融合、镜头记忆、360°安装、高级网络控制和远程监控。结合科视Christie Twist、Mystique和CIC摄像机，它可轻松设置并支持多投影仪显示自动边缘融合。
优点：
12,000 ANSI 流明亮度
四段 RGBY 色轮，色彩丰富
ECO2 模式下激光引擎可持续使用长达 20,000 小时
支持 4K@60Hz 输入，具有 HDCP 2.2 和 HDR
七种电动镜头选项，包括超短焦镜头
内置变形和混合
使用 Christie 软件和 CIC 相机进行自动边缘融合
3D内容支持
远程水平和垂直镜头调整
医学图像的DICOM模拟模式
先进的网络控制和监控（支持 Crestron、AMX 等）
HDBaseT 支持通过 CAT5/6 电缆传输 HDMI
可选无线适配器
360°安装能力
分屏功能
投影机保修五年，照明保修 20,000 小时
缺点：
最大分辨率限制为 WUXGA (1920×1200)
开箱即用的色彩准确度有待提高，尤其是 HDR
黑色水平一般，但高亮度对于商务用途来说是一个更大的优势
科视 DWU1400-GS – 规格
| 完整规格 | |
|---|---|
| 投影机型号 | 科视Christie DW1400-GS |
| 价格（建议零售价） | 建议零售价 19,706 美元 |
| 成像仪类型 | 1DLP（0.67英寸DMD） |
| 显示分辨率 | WUXGA（1,920×1,200） |
| 原始分辨率 | WUXGA（1,920×1,200） |
| 亮度（制造商声明） | 12.00 ANSI流明 |
| 光源类型 | 蓝色激光荧光粉 |
| 光源寿命 | 20,000 小时（ECO2 模式） |
| 对比度 | 6,000:1 动态对比度 |
| 变焦镜头比率 | 镜头依赖 |
| 电动变焦/对焦 | 镜头依赖 |
| 镜头移位 | H +30%，V +100%（仅限变焦镜头） |
| 可更换镜头 | 7 可选 |
| 超短焦 | 选修的 |
| 原始纵横比 | 16:10 |
| 高清电视/4K | 输入 |
| DVI 或 HDMI | HDMI |
| 3D | 是的 |
| 蓝光3D | 是的 |
| 演讲嘉宾 | 不 |
| 噪音水平（-dB） | 40/37 分贝 |
| 低延迟游戏 | 不 |
| 智能功能 | 不 |
| 商业 | 是的 |
| 课堂 | 是的 |
| 便携的 | 不 |
| 特殊功能 | |
| 联网 | 是的 |
| 尺寸（长 x 宽 x 高） | 21.9 x 18.9 x 7.5 英寸（555 x 480 x 190 毫米） |
| 重量 | 50.3磅（22.8千克）不含镜头 |
| 保修单 | 5 年 P/L（仅限投影仪） |
